NN1900 Navigation Buoy specifications

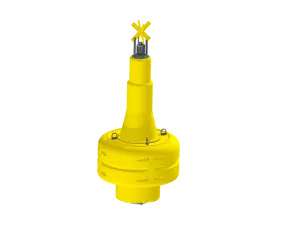

NN1900 yellow navigation buoy

Features

UV stabilised polyethylene
For excellent impact resistance and reduced maintenance costs.

Foam filled

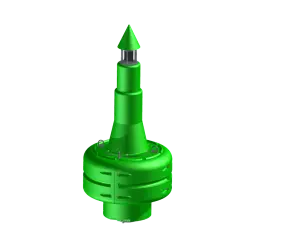

Norfloat International’s range of navigation buoys are pressure foam-filled using marine grade polyurethane foam, to a density of 36kg per cubic metre. In NN1900 starboard hand navigation buoythe unfortunate event of a collision, the buoy will remain afloat.

Replaceable tower
In the event of damage, the two section tower can be replaced whilst on station. The tower will accept all makes of self-contained lights, solar panels, ladders and internally fitted radar reflector.

Handling

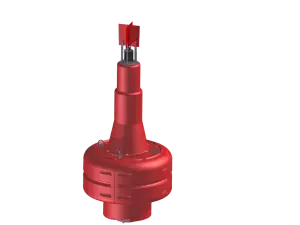

NN1900 port hand navigation buoyFor safety and ease of handling purposes the buoy can be handled using two or four lifting eyes.

Keel
The NN1900 buoy is available in either; long keel or the standard short keel. The long keel system (spar) provides excellent stability making it very suitable for shallow and exposed applications.

Specifications

Product codeNN1900
Diameter1900 mm
Air weight950+ kg
Ballast100 - 500 kg
Hull volume2656 ltrs
Reserve buoyancy1605 kg
Focal height3000 mm
Draft930 mm
Overall height4535 mm
Handling lift points4
Mooring connectionSingle point bridle
Showing 1 to 10 of 16 entries
PreviousNext

NN1900 navigation buoys pdf
